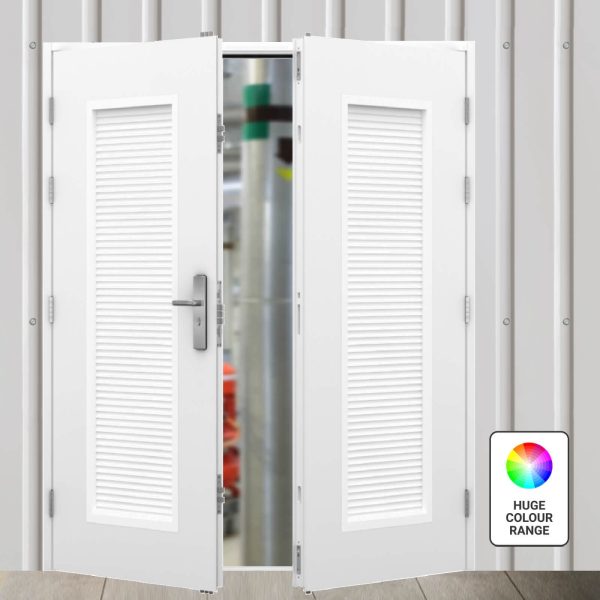

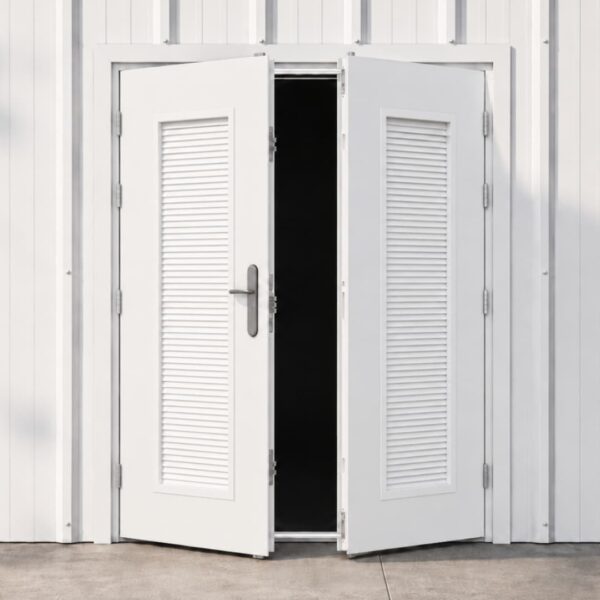

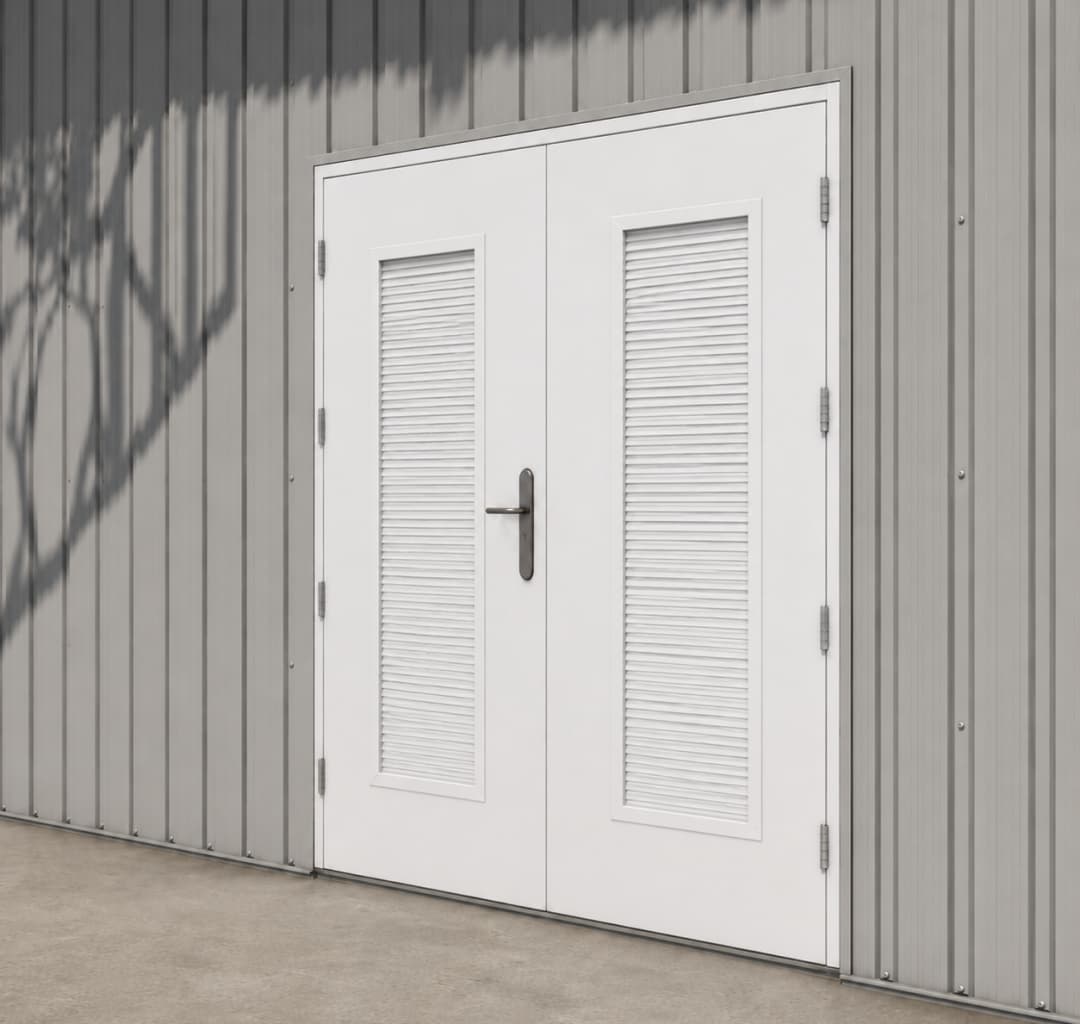

Steel Air Vent Double Door & Frame

From: $2,200.00

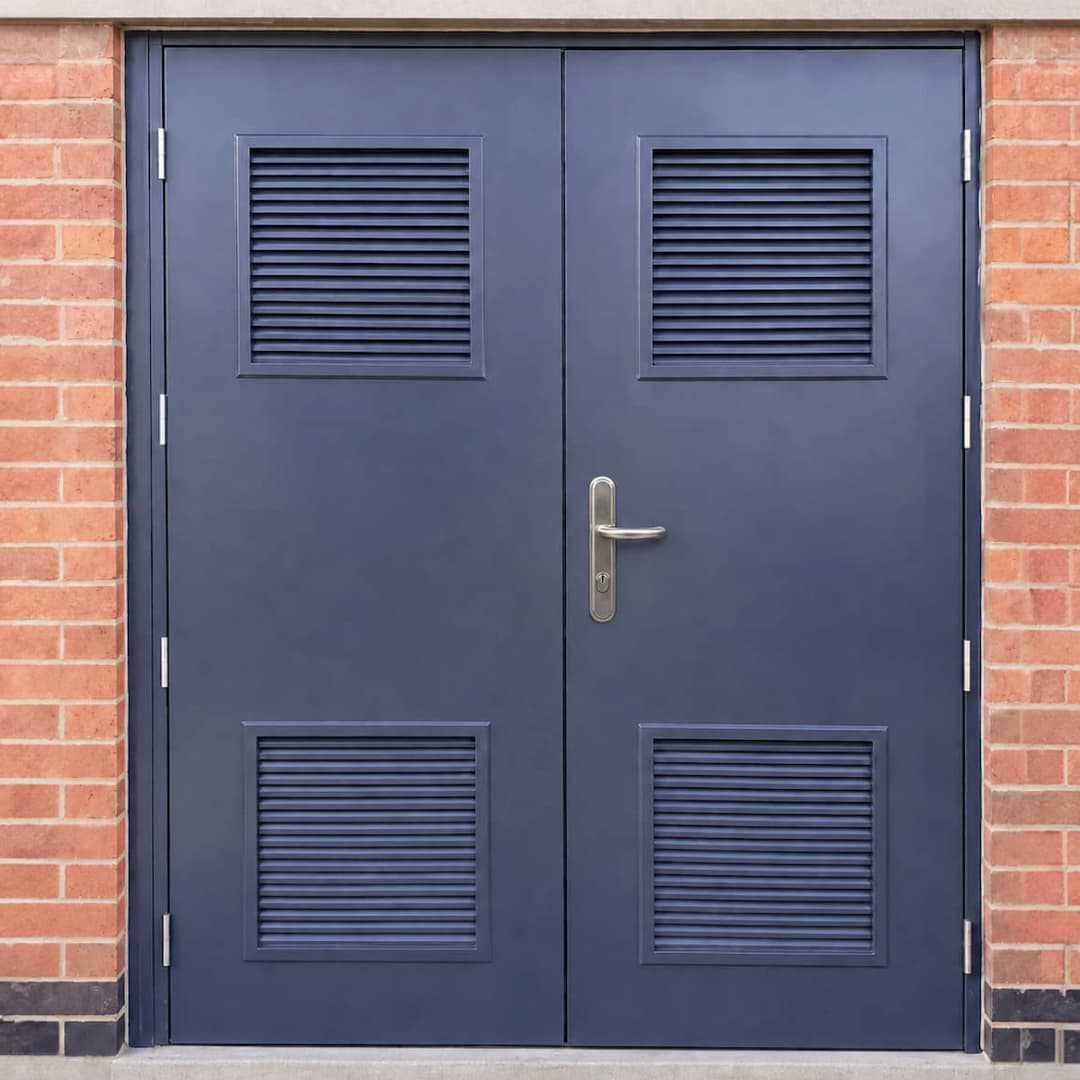

Our Double Steel Air Vent Doors are pre-installed with air relief grilles to promote airflow and ventilation whilst maintaining a high level of security. Offering up to 50% air flow, they are suitable for boiler rooms, plant rooms and server rooms.

These doors are fitted with our industry-leading multi point locking system and are some of the strongest air vent doors available in Australia. Also available as Single Air Vent Steel Doors

info icon View door size more info | View door orientation more info

    Reset options
    View more info


    View more info

    View more info
    View more info

    View more info

    View more info
    View more info
SKU: LOUVRE-DOOR-1 Category:

A highly secure double steel vented door. Available in a range of air relief grilles, these louvre doors are perfect for buildings that require extra air flow and ventilation.

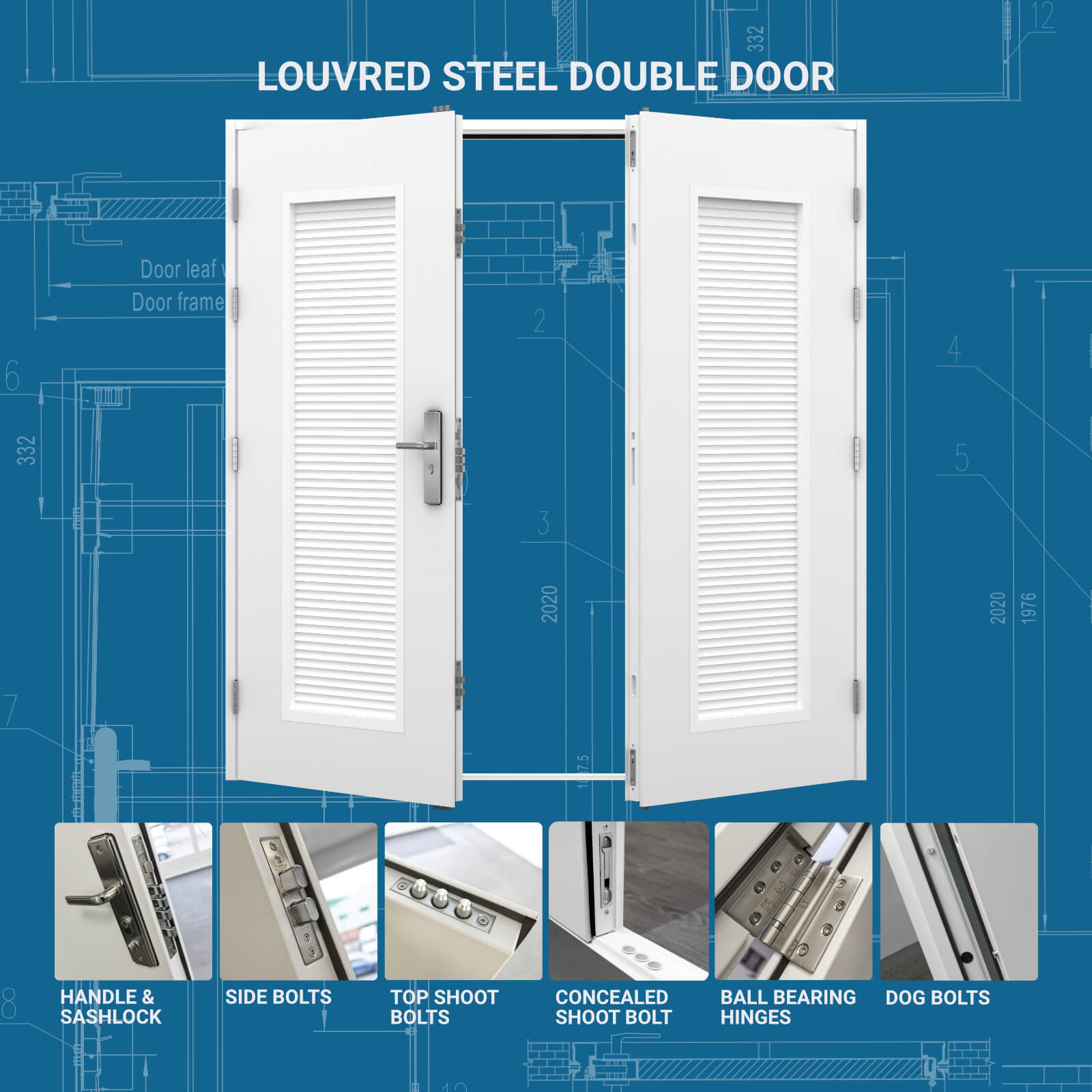

Manufactured from galvanised steel with a fully welded construction, these doors include a secure multi point locking mechanism, 3 secure ball bearing hinges and 4 security dog bolts, your property is a lot safer with a Latham’s steel door.

Finished in a heavy duty polyester powder coat, these doors are suitable for external use.

Door Type

Personnel Door

Size (mm)

710×2050*2 (1490×2095 Frame), 860×2050*2 (1790×2095 Frame), 1010×2050*2 (2090×2095 Frame)

Finish

White powder coat from stock

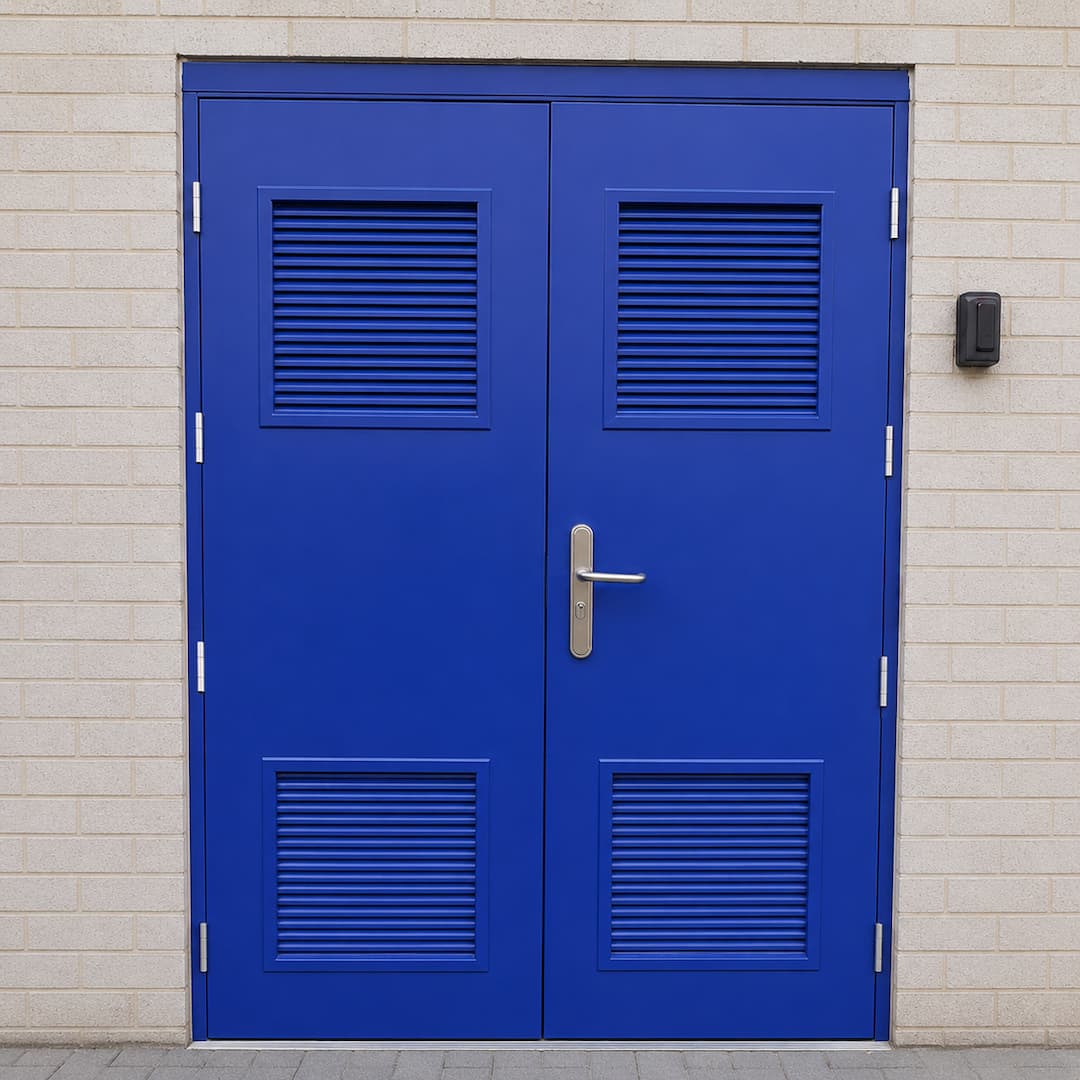

Air Relief Grille

2 x 479mm x 479mm, 2 x 479mm x 1546mm

Door Frame Material

1.4mm Galvanised Steel

Door Frame Depth

90mm

Door Leaf Material

Double skinned 0.8mm galvanised steel

Door Leaf Depth

45mm

Door Leaf Core

Honeycomb core

Internal Strengthening

None

U Value

2.88

Acoustic Value

30dB

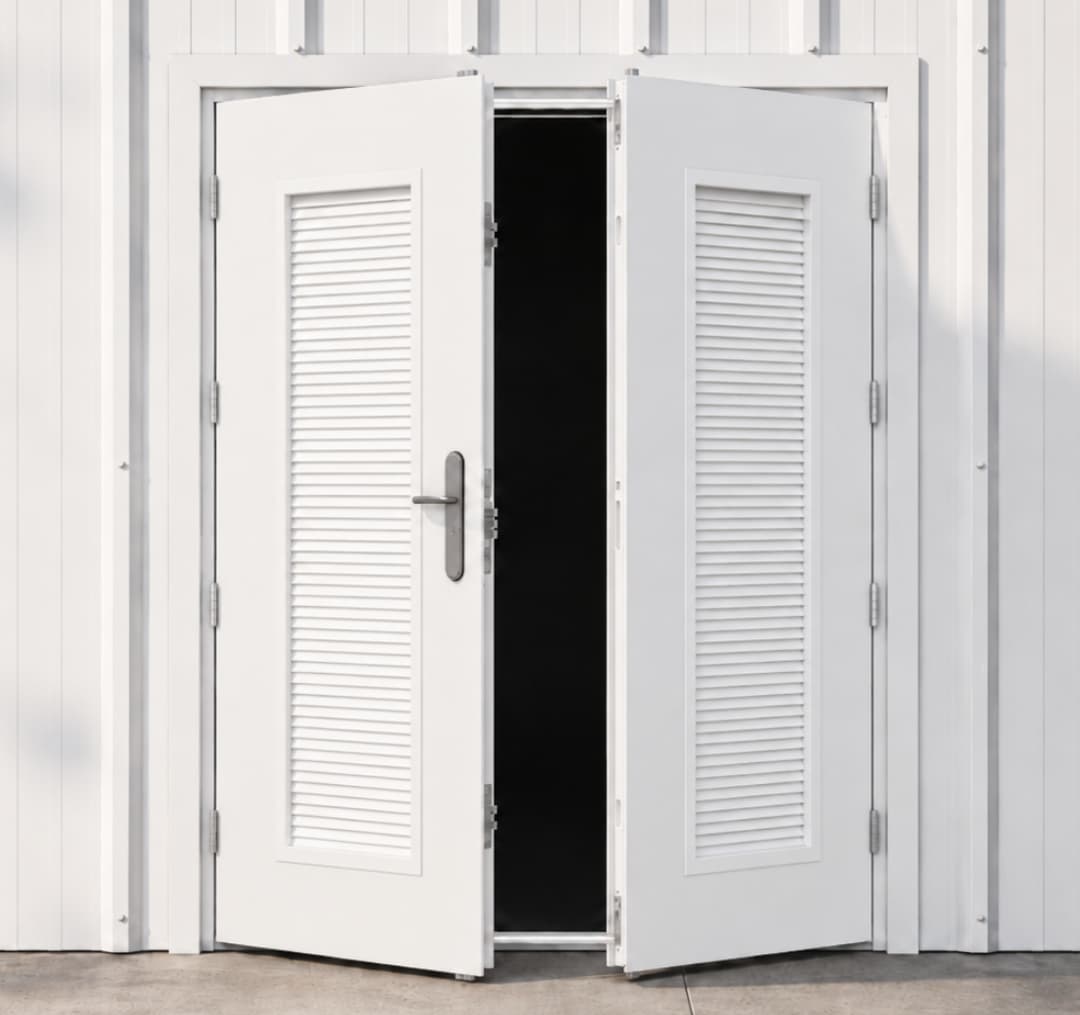

Hinges

4 Stainless steel ball bearing hinges

Handles

Hooply handles (5586)

Cylinder

UAP Tradelock Euro Cylinder, security upgrade available

Locks or Door Furniture

Latham's trademark 19 point locking system

Seal

Nylon self adhesive V-seal

Dog Bolts

4 Dog bolts

Threshold

DDA (Disability Discrimination Act) compliant threshold

Jemmy Bar Lip

At door jam, hinge side & top

Construction

Fully welded construction

Security Type

Standard

CE Certification

Yes

Security Certification

None

Fire Rating Certification

None

Stock Product

Yes

Made to Measure Product

No

External or Internal Use

Suitable for external and internal use

Example Door Purposes

budget security door, shed door, garage side door, internal office security door, stationary cupboard door

Downloads

Installation Instructions

Download installation instructions

Region D Certification (AS/NZS 1170.2:2011)

View Certification Here

Videos

Reviews

Please use the table below to see the delivery lead times for your area.

Area Stock Door Lead Time Modified Door Lead Time
Perth Metro 7 days +2-3 weeks
WA Country 1-2 Weeks
Sydney Metro 1-2 Weeks
NSW/ACT Country 2-3 Weeks
Brisbane Metro 1-2 Weeks
QLD Country 2-3 Weeks
Adelaide Metro 1-2 Weeks
SA Country 2-3 Weeks
Darwin Metro 1-2 Weeks
NT Country 2-3 Weeks
Hobart Metro 2-3 Weeks
TAS Country 2-3 Weeks
Melbourne Metro 1-2 Weeks
VIC Country 2-3 Weeks
