Box Frame Container Door (Weld in)

From: $1,210.00

Engineered for the container conversion market, our box frame container doors remove the need to install an RHS frame. The box frame can be welded directly into the container wall.

  • Flush lock, lever handle, knob & push bar options
  • Direct weld-in installation (no RHS required)
  • Pre-hung door in frame for easy installation
  • 4 sided door jamb (perimeter seals included)
  • 4 x stainless steel ball bearing hinges
  • Primer finish for on-site painting
Tested and certified to Region D rating – AS/NZS 1170.2:2011.
Icon showing our door is Cyclonic Region D certified

info icon View door size more info | View door orientation more info

    Reset options
    View more info
    View more info
SKU: BOX-FRAME-CON-DOOR Category:

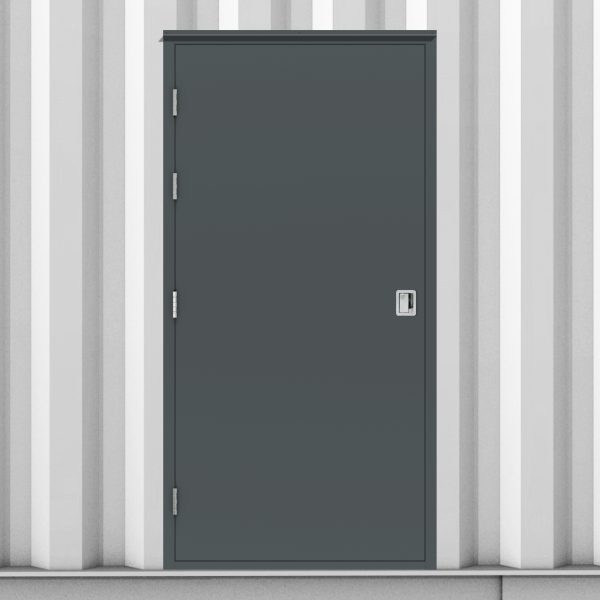

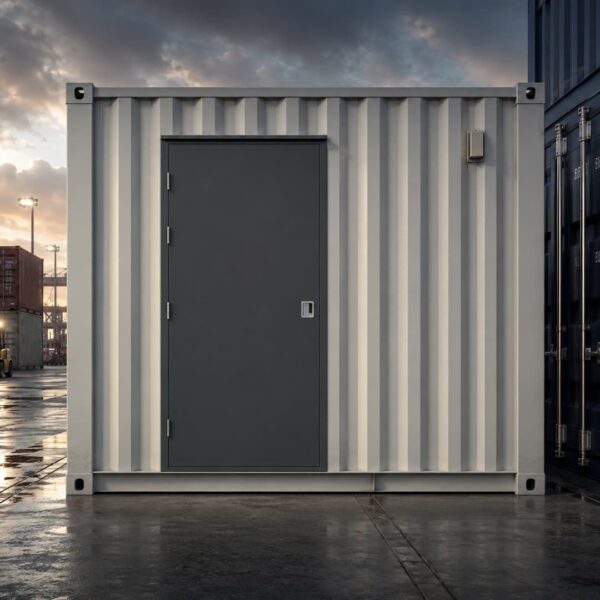

Our box frame container doors have been developed purposely for container conversions and modifications. Made from galvanised steel and featuring a fully welded frame and sealed joints, they offer easy installation by directly welding into a shipping container wall without the need for an RHS. An increased tolerance has also been factored in to allow for movement in the container during transit, or when sat on an uneven surface.

They are made of 1.0mm galvanised steel and 1.4mm galvanised steel frames, and have a fully welded frame with sealed joints. They are simple to install into a shipping container. High density Polyurethane foam (also known as PU foam) is injected into the door leaf and frame for increased insulation and rigidity. Four stainless steel ball bearing hinges hold the leaf securely in the frame.

They are supplied as standard with a high-quality flush handle, Dormakaba lever handle, knob or panic bar. These doors are also built to last and come with weather and draught-proof seals.

Door Type

Weld-In Door

Size (mm)

820 x 2060 (934 x 2115 Frame), 920 x 2060 (1034 x 2115 Frame), 1020 x 2060 (1134 x 2115 Frame)

Door Orientation

Left Hinged – Opening Outwards, Right Hinged – Opening Outwards

Finish

Grey primer ready for painting

Door Frame Material

1.4mm Galvanised Steel

Door Frame Depth

115mm

Door Leaf Material

Double skinned 1.0mm galvanised steel

Door Leaf Depth

45mm

Door Leaf Core

High Density Polyurethane Foam Insulation

Hinges

4 Stainless steel ball bearing hinges

Cylinder

Thumb turn euro cylinder lock

Locks or Door Furniture

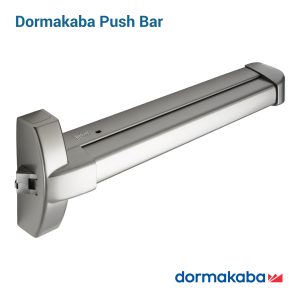

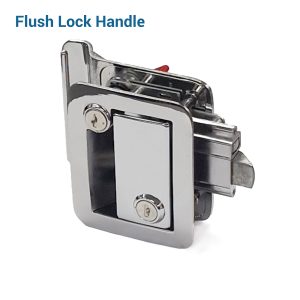

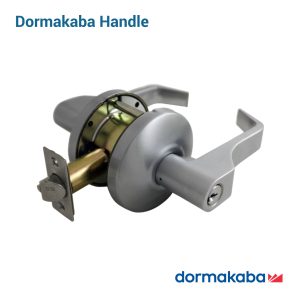

Flush Lock, Dormakaba Lever Handle, Dormakaba Knob, Dormakaba ED22 Push Bar

Seal

Weather / draught proof seals

Dog Bolts

4 Dog bolts

Threshold

DDA (Disability Discrimination Act) compliant threshold

Construction

Fully welded construction

Security Type

Standard

CE Certification

Yes

Security Certification

Pending

Fire Rating Certification

None

Stock Product

Yes

Made to Measure Product

No

External or Internal Use

Suitable for external use

Example Door Purposes

Shipping container conversions, steel apertures

Downloads

Region D Certification (AS/NZS 1170.2:2011)

View Certification Here

Videos

Delivery Lead Times

Please use the table below to see the delivery lead times for your area.

Area Stock Door Lead Time Modified Door Lead Time
Perth Metro 7 days +2-3 weeks
WA Country 1-2 Weeks
Sydney Metro 1-2 Weeks
NSW/ACT Country 2-3 Weeks
Brisbane Metro 1-2 Weeks
QLD Country 2-3 Weeks
Adelaide Metro 1-2 Weeks
SA Country 2-3 Weeks
Darwin Metro 1-2 Weeks
NT Country 2-3 Weeks
Hobart Metro 2-3 Weeks
TAS Country 2-3 Weeks
Melbourne Metro 1-2 Weeks
VIC Country 2-3 Weeks
