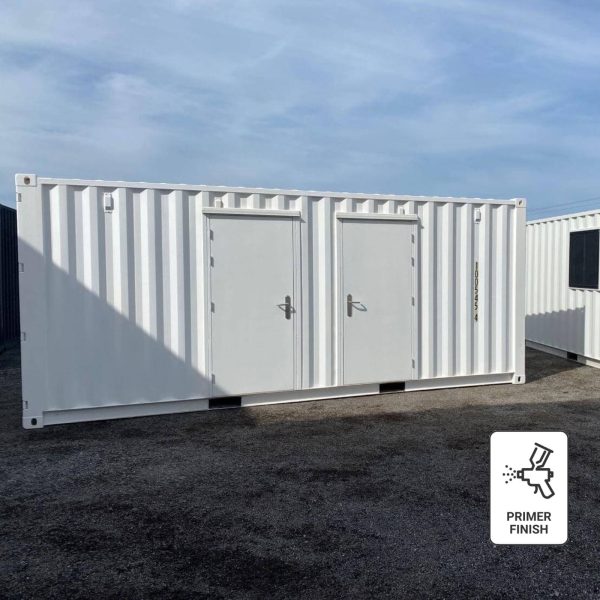

Heavy Duty Side Door & Frame for Shipping Container

From: $1,155.00

Designed exclusively for the container conversion market, our shipping container side doors are not only secure but easy to install.

Made from galvanised steel, they include our trademark Genuine HOOPLY® multi point locking system and stainless steel security handles. Available in primer finish, ready for on-site painting, or white powder coat finish.

External frame dimensions: 910mm×2065mm (840mmx2020mm door)

Tested and certified to Region D rating – AS/NZS 1170.2:2011.
Icon showing our door is Cyclonic Region D certified

info icon View door size more info | View door orientation more info

    Reset options
    View more info
    View more info
    View more info

    View more info


    View more info


    View more info

    View more info
    View more info
SKU: CONT-DOOR Category:

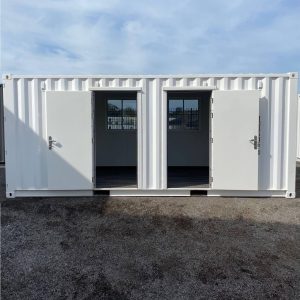

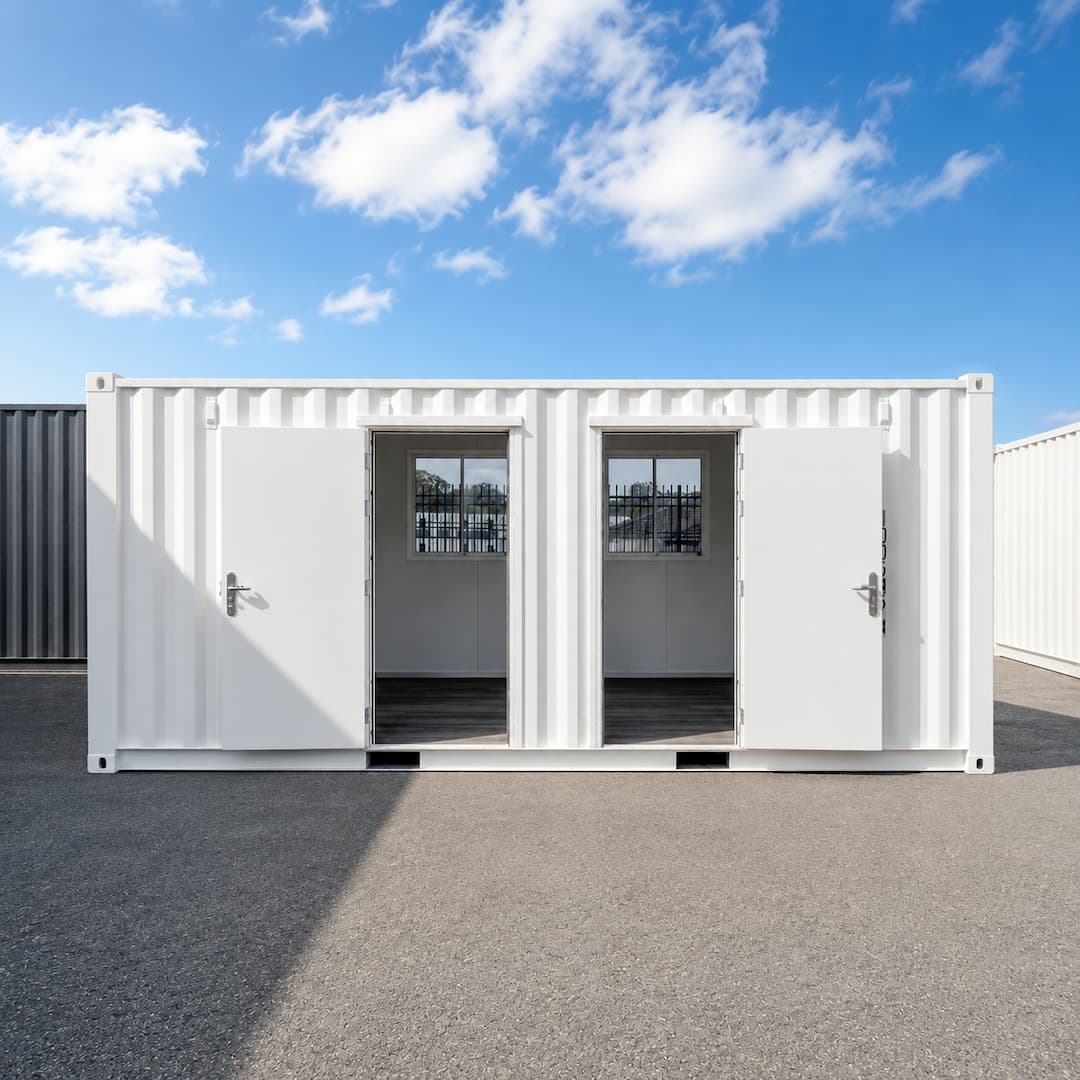

Our security container doors have been developed purposely for container conversions and modifications. Made from galvanised steel and featuring a fully welded frame and sealed joints, they offer easy installation when welding into a shipping container. An increased tolerance has also been factored in to allow for movement in the container during transit, or when sat on an uneven surface.

These doors are manufactured with 1mm galvanised steel door skins and 2mm galvanised frames and are supplied wet sprayed with a grey primer finish, so they are ready to be painted immediately after installation.

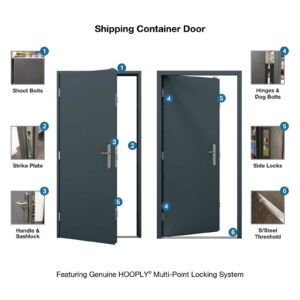

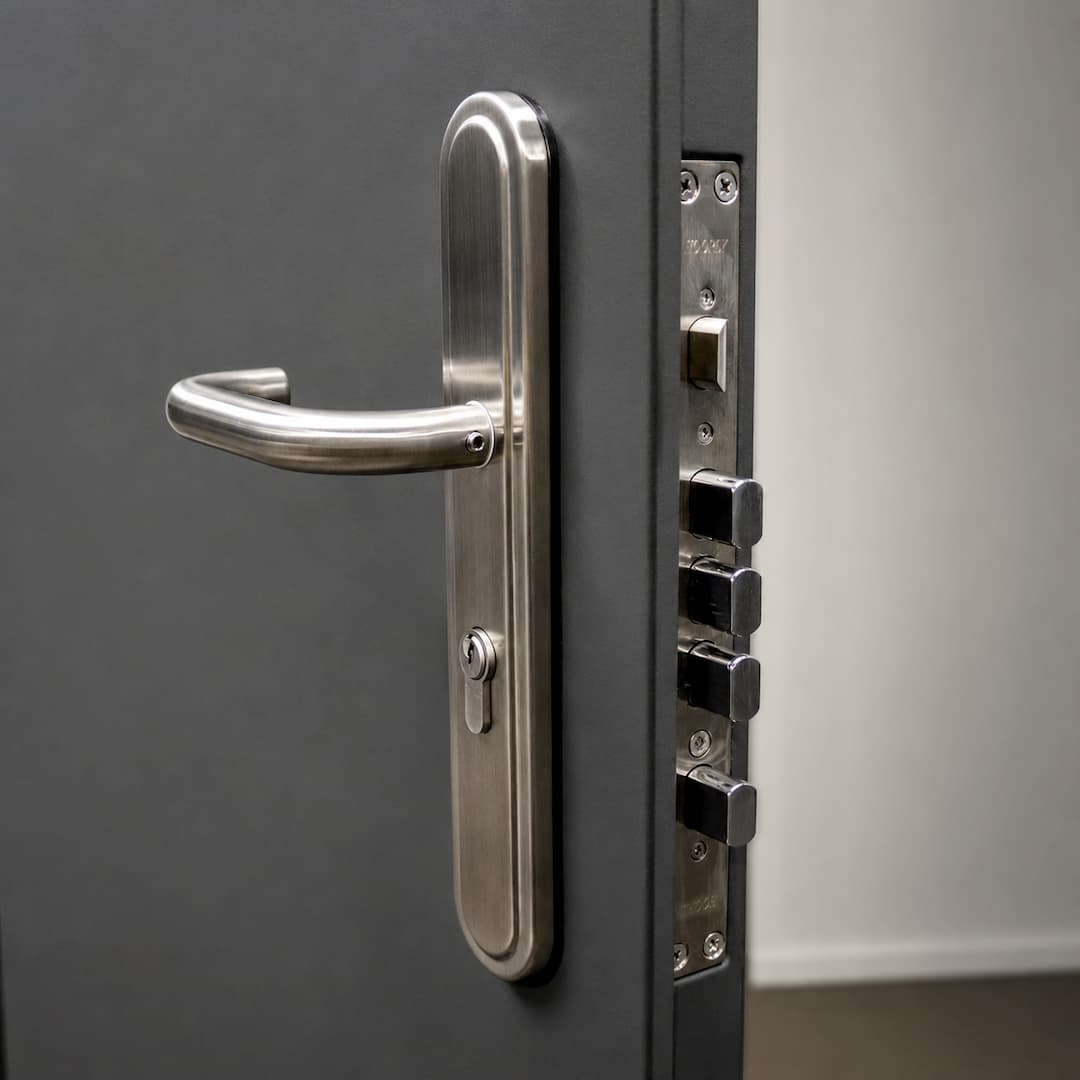

Included in our doors is our trademark Genuine HOOPLY® multi point locking system. The locking system is protected with 2mm lock boxes and stainless steel tubes to protect the connecting rods. An adjustable latch keep is integrated into the strike plate and lock box for any final adjustments on-site.

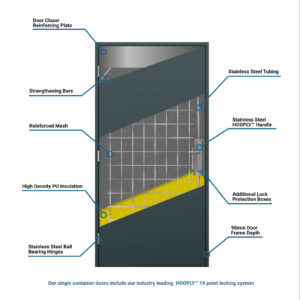

The door leaf and frame are injected with polyurethane foam (also known as PU foam) for increased insulation and rigidity. A full subframe, 4mm welded mesh, door closer reinforcing plate and additional corner struts are welded inside the door for additional strength and integrity.

Our container doors all comply with the Disability Discrimination Act by having a level stainless steel threshold with a maximum upstand of only 12mm.

Door Type

Shipping Container Door

Size (mm)

840×2020 (910×2065 Frame)

Finish

Grey primer ready for painting, Signal White Powder Coat

Door Frame Material

2.0mm Galvanised steel

Door Frame Depth

90mm

Door Leaf Material

Double skinned 1.0mm galvanised steel

Door Leaf Depth

45mm

Door Leaf Core

High Density Polyurethane Foam Insulation

Hinges

3 Stainless steel ball bearing hinges

Handles

Genuine HOOPLY® stainless steel handles

Cylinder

Thumb turn euro cylinder lock

Locks or Door Furniture

Genuine HOOPLY® multi-point locking system

Seal

Weather / draught proof seals

Dog Bolts

4 Dog bolts

Threshold

DDA (Disability Discrimination Act) compliant threshold

Construction

Fully welded construction

Security Type

Standard

CE Certification

Yes

Security Certification

Pending

Fire Rating Certification

None

Stock Product

Yes

Made to Measure Product

No

External or Internal Use

Suitable for external use

Example Door Purposes

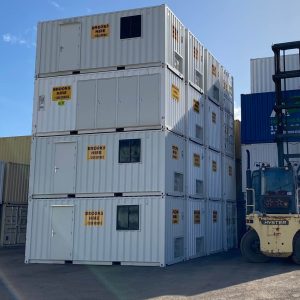

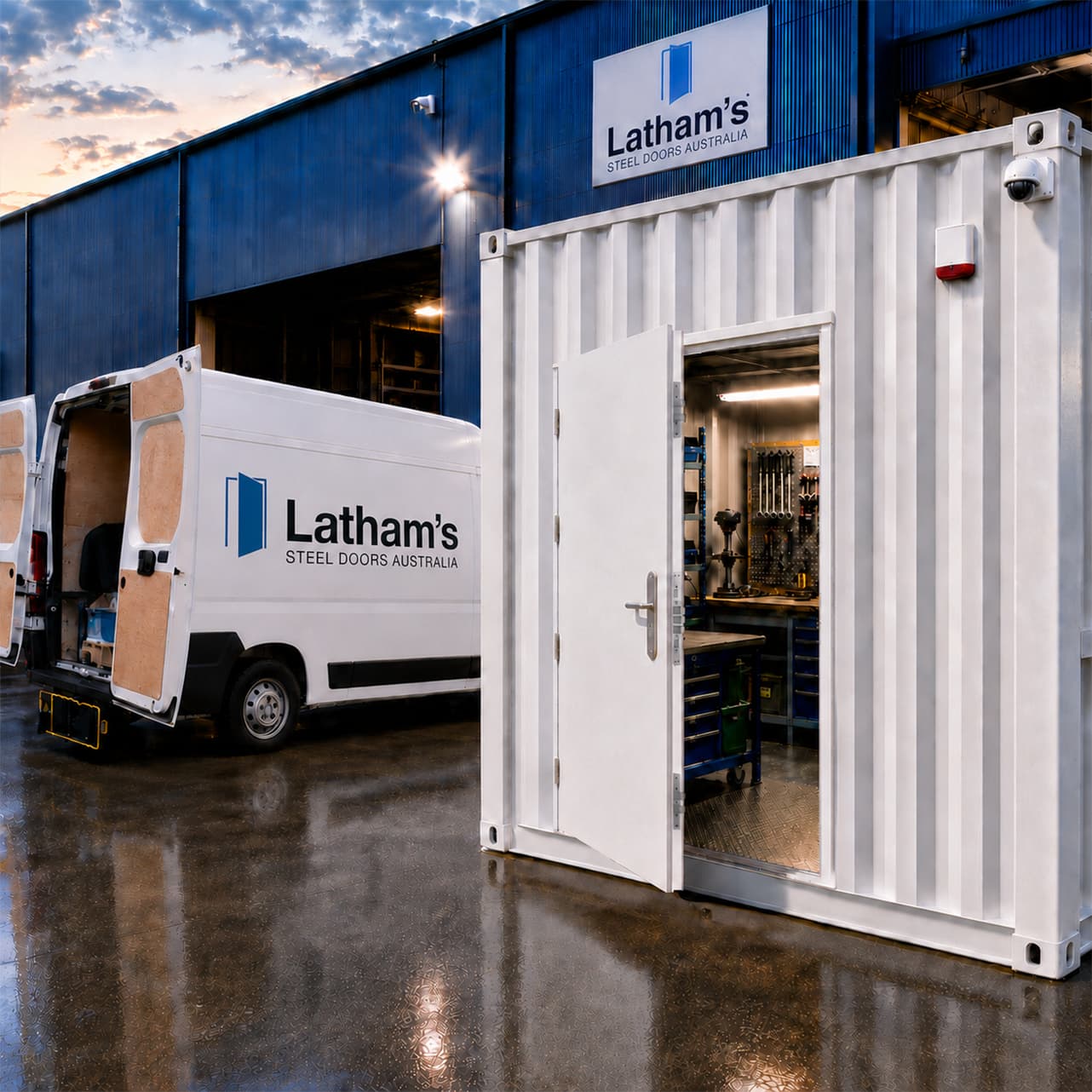

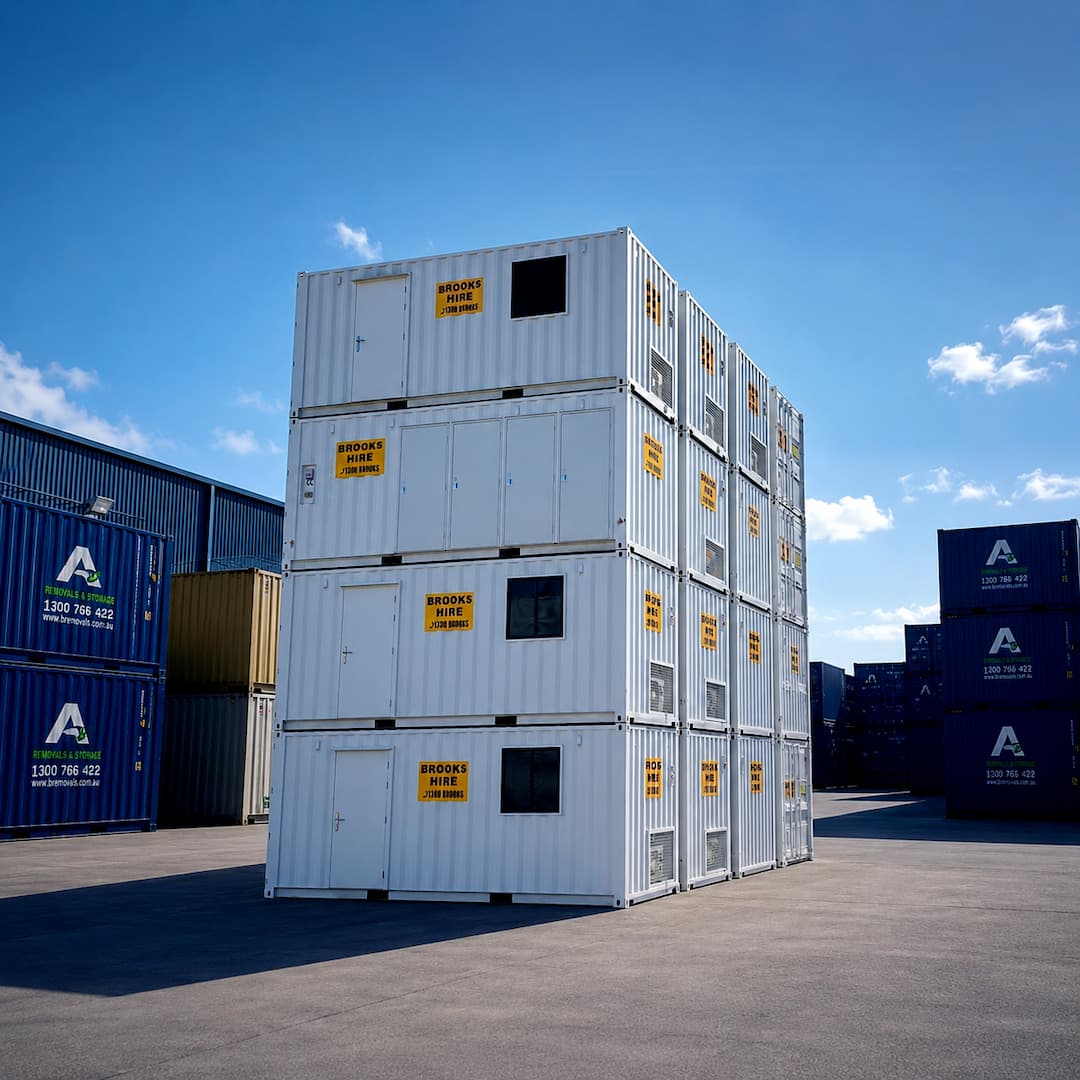

Shipping container doors, container conversions, site offices, modular buildings

Downloads

Installation Instructions

Download installation instructions

Region D Certification (AS/NZS 1170.2:2011)

View Certification Here

Videos

Reviews

Please use the table below to see the delivery lead times for your area.

Area Stock Door Lead Time Modified Door Lead Time
Perth Metro 7 days +2-3 weeks
WA Country 1-2 Weeks
Sydney Metro 1-2 Weeks
NSW/ACT Country 2-3 Weeks
Brisbane Metro 1-2 Weeks
QLD Country 2-3 Weeks
Adelaide Metro 1-2 Weeks
SA Country 2-3 Weeks
Darwin Metro 1-2 Weeks
NT Country 2-3 Weeks
Hobart Metro 2-3 Weeks
TAS Country 2-3 Weeks
Melbourne Metro 1-2 Weeks
VIC Country 2-3 Weeks
